    Underground Mining Use 3.5m DW12-300/100X Single Hydraulic Prop

    DW12-300/100X Single Hydraulic Prop consists of hinged top cover, live cylinder, sealing dome, piston, three-way valve, handle body, oil pipe body, base body, cylinder and return spring.

    Product Recommendation

    • Product Introduction
    • Product Parameter
    • Product Picture
    • Product Comment

    Introduction of Underground Mining Use 3.5m DW12-300/100X Single Hydraulic Prop

    DW12-300/100X Single Hydraulic Prop consists of hinged top cover, live cylinder, sealing dome, piston, three-way valve, handle body, oil pipe body, base body, cylinder and return spring.

    DW12-300/100X Single Hydraulic Prop has the following features:

    1. The outer dimensions of the stud and the live post are welded, the appearance is more beautiful, the coaxiality is ensured, and the weld is smoothly transitioned, and the weld is not affected by the handle;

    2, the base is outsourced, while increasing the stroke, it also increases the force area of the base, and effectively protects the bottom of the cylinder to enhance the rigidity of the cylinder.

    3. The sealing structure is designed and installed to the bottom of the living cylinder body, the piston is removed, the piston and the living column are integrated, the leakage point of the piston living column connection is eliminated, and the limit length is increased;

    4. The hinged top cover and the column head are connected by wire trough, and the three-way valve is protected by the top cover under the top cover; the single hydraulic prop is a new environmental protection type support equipment, which can be used together with the metal hinged top beam. For high-grade general mining and guns, the working face support roof and the fully mechanized mining face support end can also be used for column or other temporary support.

    Parameter of Underground Mining Use 3.5m DW12-300/100X Single Hydraulic Prop

    Model

    project

    Max height

    mm

    Min height

    mm

    workingstrokemm

    Rated working resistance

    KN

    weight

    Kg

    Rated working pressureMPa

    Pump station pressure

    MPa

    Initial support KN

    Bore diametermm

    Work liquid

    DW06-300/100X

    630

    400

    230

    300

    21

    28.3

    34

    15-20

    108.5-144.7

    100

    Emulsion containing 1% to 2% M10 emulsified oil

    DW08-300/100X

    800

    490

    310

    24

    DW10-300/100X

    1000

    595

    405

    27.5

    DW12-300/100X

    1200

    700

    500

    31.5

    DW14-300/100X

    1400

    810

    590

    34.5

    DW16-300/100X

    1600

    920

    680

    38

    DW18-300/100X

    1800

    1035

    765

    42

    DW20-300/100X

    2000

    1150

    850

    46.5

    DW22-300/100X

    2240

    1280

    960

    51

    DW25-250/100X

    2500

    1430

    1070

    250

    56

    DW28-250/100X

    2800

    1600

    1200

    62

    DW31.5-200/100X

    3150

    1780

    1370

    200

    69

    27.6

    DW35-200/100X

    3500

    1960

    1540

    75

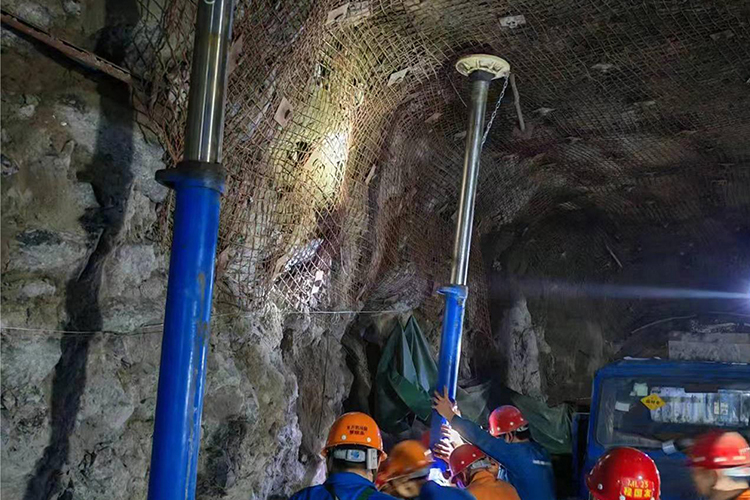

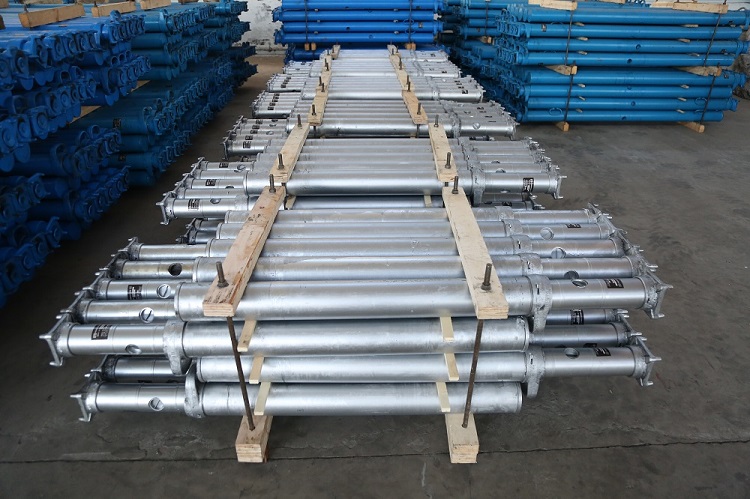

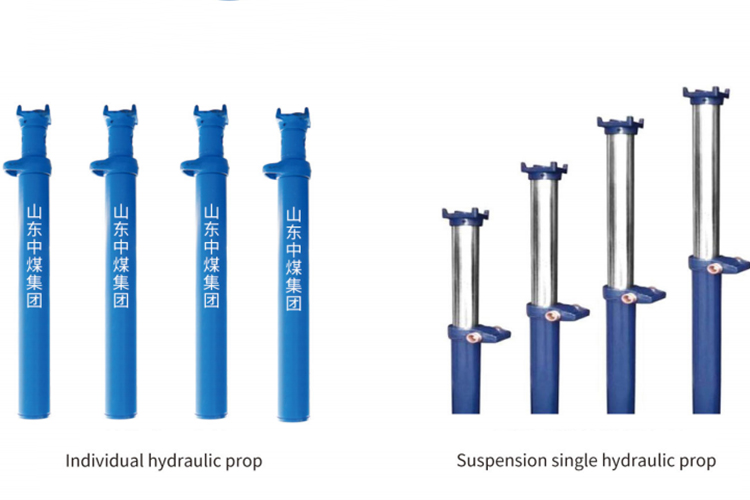

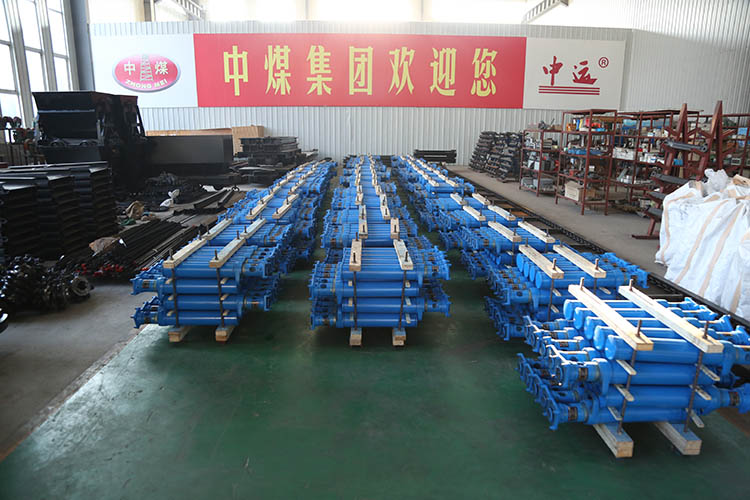

    Pictures of Underground Mining Use 3.5m DW12-300/100X Single Hydraulic Prop
