DW08-350/110X Suspension Single Hydraulic Prop

DW08-350/110X Suspension Single Hydraulic Prop

Date:2018-08-29     Label:

Hydraulic Prop

Suspension Hydraulic Prop

Acrow Prop

Suspension hydraulic props adopt the principle of plunger suspension technology.

Contact Us Product Center
Introduction of

DW08-350/110X Suspension Single Hydraulic Prop

Suspension hydraulic props adopt the principle of plunger suspension technology. The levitation force of the pillar reaches four-fifths of the working resistance, and the force on the column is only one-fifth, which greatly improves the stability and safety of the pillar, and improves the support height, bearing capacity and anti-offset capability of the pillar. Suspension single hydraulic prop has a wide range of applications and can be widely used in thin coal seams, medium-thick coal seams and thick coal seams.

Main Parameter of

DW08-350/110X Suspension Single Hydraulic Prop

Model

project

Max height

mm

Min height

mm

Working

strokemm

Rated working resistance

KN

weight

Kg

Rated working pressure

MPa

Pump station pressure

MPa

Initial support KN

Bore diametermm

Work liquid

DW06-350/110X

630

400

230

350

25

39.7

15-20

132-176

110

Emulsion containing 1% to 2% M10 emulsified oil

DW08-350/110X

800

490

310

28

DW10-350/110X

1000

595

405

32

DW12-350/110X

1200

700

500

36

DW14-350/110X

1400

810

590

40

DW16-350/110X

1600

920

680

44

DW18-350/110X

1800

1035

765

48

DW20-350/110X

2000

1150

850

52

DW22-350/110X

2240

1280

960

56

DW25-350/110X

2500

1430

1070

60

DW28-350/110X

2800

1600

1200

66

DW31.5-350/110X

3150

1780

1370

74

DW35-350/110X

3500

1960

1540

82

DW38-250/110X

3800

2163

1637

88

28.3

DW40-250/110X

4000

2224

1780

96

DW42-250/110X

4200

2330

1880

100

DW45-250/110X

4500

2480

2020

110

PHOTOS OF

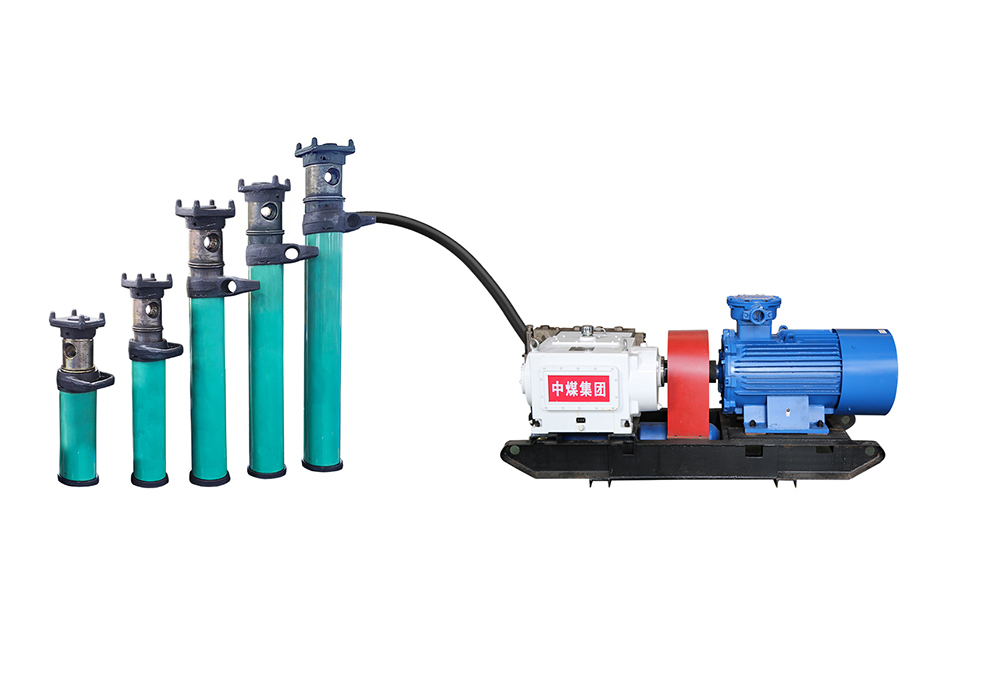

DW08-350/110X Suspension Single Hydraulic Prop

DW08-350/110X Suspension Single Hydraulic Prop
DW08-350/110X Suspension Single Hydraulic Prop

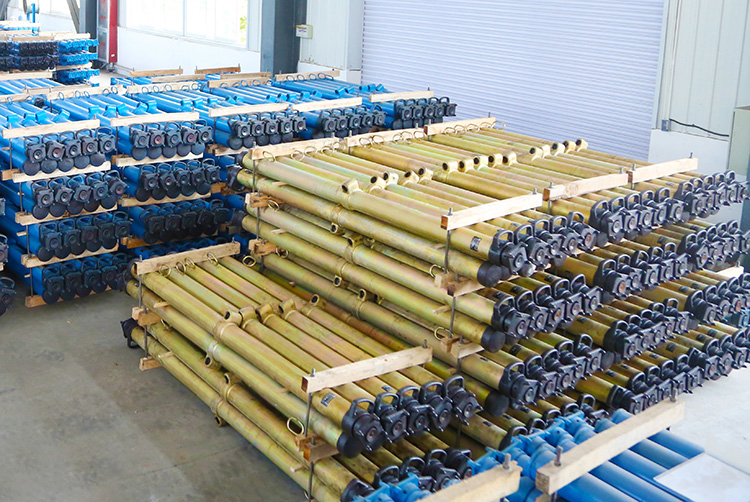

PHOTOS OF

DW08-350/110X Suspension Single Hydraulic Prop
