DW10-350/110X Mining Hydraulic Props

DW10-350/110X Mining Hydraulic Props

Date:2018-08-29     Label:

Hydraulic Prop

Mining Hydraulic Prop

Single Hydraulic Prop

Hydraulic prop is made of advanced technology, anti-corrosion, strong wear resistance and high hardness.

Contact Us Product Center
Introduction of

DW10-350/110X Mining Hydraulic Props

Hydraulic prop is made of advanced technology, anti-corrosion, strong wear resistance and high hardness. It is an environmentally-friendly pillar equipment. Light weight and no internal leakage, once the pillars are leaked, the pillars can be replaced at any time, avoiding the false top and cumbersome inspection work caused by the internal leakage of the pillars.

Main Parameter of

DW10-350/110X Mining Hydraulic Props

Model

project

Max height

mm

Min height

mm

Working

strokemm

Rated working resistance

KN

weight

Kg

Rated working pressure

MPa

Pump station pressure

MPa

Initial support KN

Bore diametermm

Work liquid

DW06-350/110X

630

400

230

350

25

39.7

15-20

132-176

110

Emulsion containing 1% to 2% M10 emulsified oil

DW08-350/110X

800

490

310

28

DW10-350/110X

1000

595

405

32

DW12-350/110X

1200

700

500

36

DW14-350/110X

1400

810

590

40

DW16-350/110X

1600

920

680

44

DW18-350/110X

1800

1035

765

48

DW20-350/110X

2000

1150

850

52

DW22-350/110X

2240

1280

960

56

DW25-350/110X

2500

1430

1070

60

DW28-350/110X

2800

1600

1200

66

DW31.5-350/110X

3150

1780

1370

74

DW35-350/110X

3500

1960

1540

82

DW38-250/110X

3800

2163

1637

88

28.3

DW40-250/110X

4000

2224

1780

96

DW42-250/110X

4200

2330

1880

100

DW45-250/110X

4500

2480

2020

110

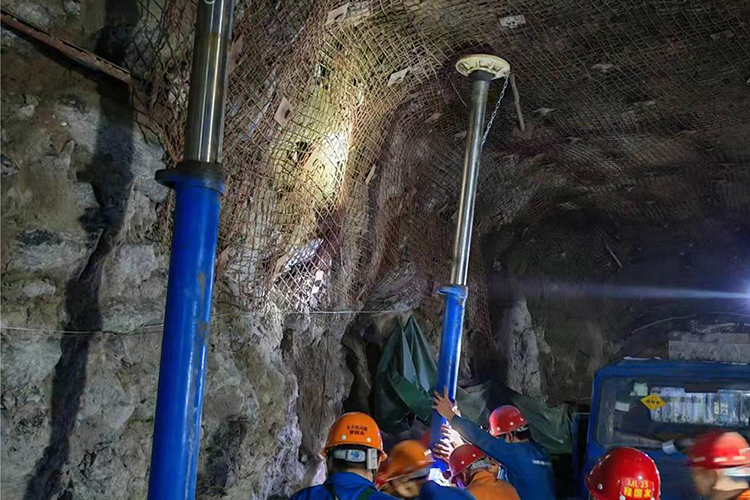

PHOTOS OF

DW10-350/110X Mining Hydraulic Props

DW10-350/110X Mining Hydraulic Props
DW10-350/110X Mining Hydraulic Props
PHOTOS OF

DW10-350/110X Mining Hydraulic Props
