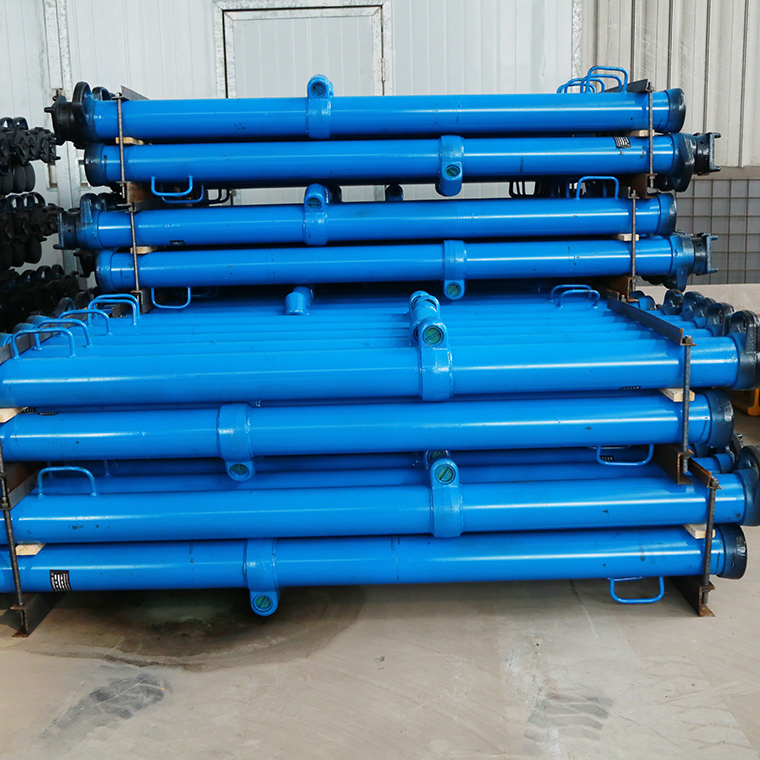

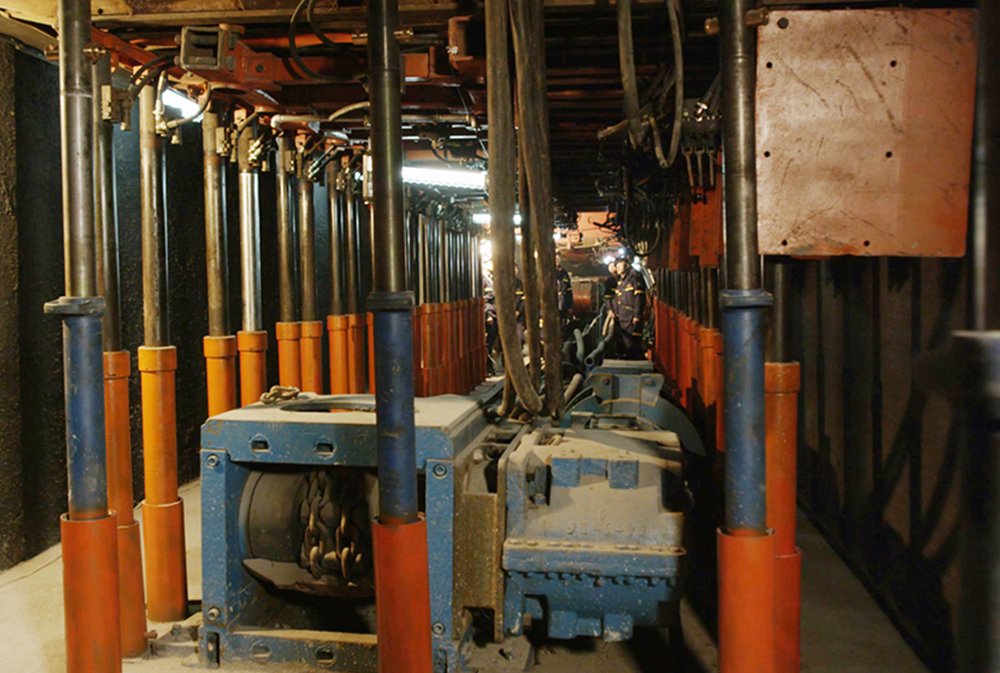

Single hydraulic prop is a kind of new environmental protection supporting equipment produced by our group, it can be matched with metal articulated roof beam used in fully mechanized coalface.
Contact Us Product CenterSingle hydraulic prop is a kind of new environmental protection supporting equipment produced by our group, it can be matched with metal articulated roof beam used in fully mechanized coalface. Single hydraulic prop is made of lightweight composite material. It is widely used in thin coal seam, thick coal seam or over thick coal seam. This equipment with good stability, technical performance advantages prominent and the use of flexible benefits.
Main Parameter of
|
Model project |
Max height （mm） |
Min height （mm） |
Working stroke（mm） |
Rated working resistance KN |
weight （Kg） |
Rated working pressure MPa |
Pump station pressure MPa |
Initial support KN |
Bore diameter（mm） |
Work liquid |
|
DW06-350/110X |
630 |
400 |
230 |
350 |
25 |
39.7 |
15-20
|
132-176 |
110 |
Emulsion containing 1% to 2% M10 emulsified oil
|
|
DW08-350/110X |
800 |
490 |
310 |
28 |
||||||
|
DW10-350/110X |
1000 |
595 |
405 |
32 |
||||||
|
DW12-350/110X |
1200 |
700 |
500 |
36 |
||||||
|
DW14-350/110X |
1400 |
810 |
590 |
40 |
||||||
|
DW16-350/110X |
1600 |
920 |
680 |
44 |
||||||
|
DW18-350/110X |
1800 |
1035 |
765 |
48 |
||||||
|
DW20-350/110X |
2000 |
1150 |
850 |
52 |
||||||
|
DW22-350/110X |
2240 |
1280 |
960 |
56 |
||||||
|
DW25-350/110X |
2500 |
1430 |
1070 |
60 |
||||||
|
DW28-350/110X |
2800 |
1600 |
1200 |
66 |
||||||
|
DW31.5-350/110X |
3150 |
1780 |
1370 |
74 |
||||||
|
DW35-350/110X |
3500 |
1960 |
1540 |
82 |
||||||
|
DW38-250/110X |
3800 |
2163 |
1637 |
|
88 |
28.3 |
||||
|
DW40-250/110X |
4000 |
2224 |
1780 |
96 |
||||||
|
DW42-250/110X |
4200 |
2330 |
1880 |
100 |
||||||
|
DW45-250/110X |
4500 |
2480 |
2020 |
110 |
