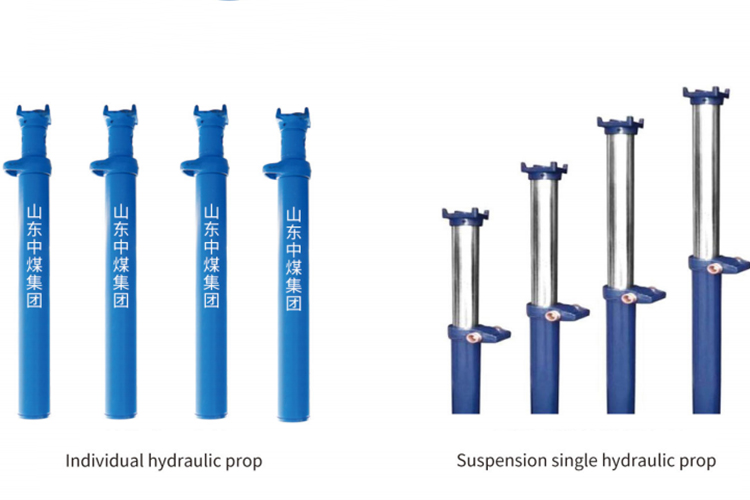

DW14-300/100X Suspension Hydraulic Prop is an externally-resisting constant-resistance temporary pillar. It is mainly used for temporary support of coal mine excavation end. It can also be used for occasions where temporary support is needed in other mines and geotechnical projects. Made of quality composite materials. It can be used to work with coal mine water pressure, and has the characteristics of light weight, corrosion resistance and easy operation. DW14-300/100X Suspension Hydraulic Prop adopts high-quality materials and advanced medium-frequency heat treatment straightening process, one-time composite 镗 roll forming, high quality parts and stable and reliable overall performance.
Main Parameter of
|
Model project |
Max height （mm） |
Min height （mm） |
workingstroke（mm） |
Rated working resistance KN |
weight （Kg） |
Rated working pressureMPa |
Pump station pressure MPa |
Initial support KN |
Bore diameter（mm） |
Work liquid |
||
|
DW06-300/100X |
630 |
400 |
230 |
300 |
21 |
34 |
15-20
|
108.5-144.7 |
100 |
Emulsion containing 1% to 2% M10 emulsified oil
|
||
|
DW08-300/100X |
800 |
490 |
310 |
24 |
||||||||
|
DW10-300/100X |
1000 |
595 |
405 |
27.5 |
||||||||
|
DW12-300/100X |
1200 |
700 |
500 |
31.5 |
||||||||
|
DW14-300/100X |
1400 |
810 |
590 |
34.5 |
||||||||
|
DW16-300/100X |
1600 |
920 |
680 |
38 |
||||||||
|
DW18-300/100X |
1800 |
1035 |
765 |
42 |
||||||||
|
DW20-300/100X |
2000 |
1150 |
850 |
46.5 |
||||||||
|
DW22-300/100X |
2240 |
1280 |
960 |
51 |
||||||||
|
DW25-250/100X |
2500 |
1430 |
1070 |
250 |
56 |
|||||||
|
DW28-250/100X |
2800 |
1600 |
1200 |
62 |
||||||||
|
DW31.5-200/100X |
3150 |
1780 |
1370 |
200 |
69 |
27.6 |
||||||
|
DW35-200/100X |
3500 |
1960 |
1540 |
75 |
