NOTICE:
(1) Single Hydraulic Prop has strong anti-offset capability and greater stability.
(2) High reliability
(3) Light weight
(4) Large work schedule and wide range of use
(5) High strength and high stability
(6) Easy to use
(7) Low maintenance and maintenance costs
(8) Use neutral water, low operating cost

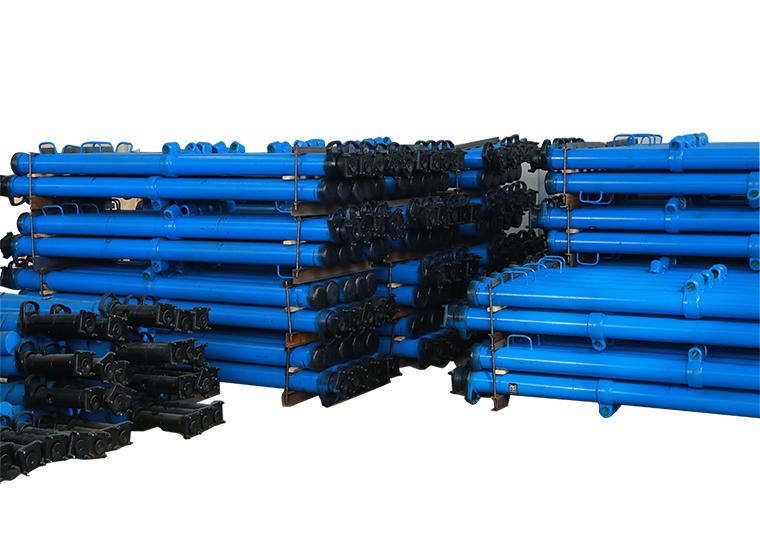

DW18-300/100X Mining Single Hydraulic Prop is matched with metal hinged top beam and column, and can be applied to any coal mining face with coal seam inclination below 35°.
|
Model project |
Max height （mm） |
Min height （mm） |
workingstroke（mm） |
Rated working resistance KN |
weight （Kg） |
Rated working pressureMPa |
Pump station pressure MPa |
Initial support KN |
Bore diameter（mm） |
Work liquid |
||
|
DW06-300/100X |
630 |
400 |
230 |
300 |
21 |
34 |
15-20
|
108.5-144.7 |
100 |
Emulsion containing 1% to 2% M10 emulsified oil
|
||
|
DW08-300/100X |
800 |
490 |
310 |
24 |
||||||||
|
DW10-300/100X |
1000 |
595 |
405 |
27.5 |
||||||||
|
DW12-300/100X |
1200 |
700 |
500 |
31.5 |
||||||||
|
DW14-300/100X |
1400 |
810 |
590 |
34.5 |
||||||||
|
DW16-300/100X |
1600 |
920 |
680 |
38 |
||||||||
|
DW18-300/100X |
1800 |
1035 |
765 |
42 |
||||||||
|
DW20-300/100X |
2000 |
1150 |
850 |
46.5 |
||||||||
|
DW22-300/100X |
2240 |
1280 |
960 |
51 |
||||||||
|
DW25-250/100X |
2500 |
1430 |
1070 |
250 |
56 |
|||||||
|
DW28-250/100X |
2800 |
1600 |
1200 |
62 |
||||||||
|
DW31.5-200/100X |
3150 |
1780 |
1370 |
200 |
69 |
27.6 |
||||||
|
DW35-200/100X |
3500 |
1960 |
1540 |
75 |
