    DW31.5-200/100X Suspension Hydraulic Single Prop

    DW31.5-200/100X Suspension Hydraulic Single Prop is an externally-resisting constant-resistance temporary pillar. It is mainly used for temporary support of coal mine excavation end, and can also be u

    Product Recommendation

    • Product Introduction
    • Product Parameter
    • Product Picture
    • Product Comment

    Introduction of DW31.5-200/100X Suspension Hydraulic Single Prop

    DW31.5-200/100X Suspension Hydraulic Single Prop is an externally-resisting constant-resistance temporary pillar. It is mainly used for temporary support of coal mine excavation end, and can also be used for occasions where temporary support is needed in other mines and geotechnical projects. The product is made of lightweight composite materials. It can work with coal mine static pressure water, and has the characteristics of light weight, corrosion resistance and easy operation.

    DW31.5-200/100X Suspension Hydraulic Single Prop is a temporary support equipment. It is a new type of equipment for coal mine industry to carry out roadway excavation and roadway maintenance for advanced support and temporary support. The product uses emulsion or static pressure water as the working medium. Because the key components (live column, cylinder, base, return spring, etc.) adopt the leading anti-corrosion technology, it has certain acid and alkali resistance and is suitable for different work. The environment is suitable for the temporary support FRP with working resistance 30kN as brittle material. When using, avoid impact and use three-purpose valve.

    Parameter of DW31.5-200/100X Suspension Hydraulic Single Prop

    Model

    project

    Max height

    mm

    Min height

    mm

    workingstrokemm

    Rated working resistance

    KN

    weight

    Kg

    Rated working pressureMPa

    Pump station pressure

    MPa

    Initial support KN

    Bore diametermm

    Work liquid

    DW06-300/100X

    630

    400

    230













    300

    21











    28.3



    34











    15-20

















    108.5-144.7











    100











    Emulsion containing 1% to 2% M10 emulsified oil



    DW08-300/100X

    800

    490

    310

    24

    DW10-300/100X

    1000

    595

    405

    27.5

    DW12-300/100X

    1200

    700

    500

    31.5

    DW14-300/100X

    1400

    810

    590

    34.5

    DW16-300/100X

    1600

    920

    680

    38

    DW18-300/100X

    1800

    1035

    765

    42

    DW20-300/100X

    2000

    1150

    850

    46.5

    DW22-300/100X

    2240

    1280

    960

    51

    DW25-250/100X

    2500

    1430

    1070

    250

    56

    DW28-250/100X

    2800

    1600

    1200

    62

    DW31.5-200/100X

    3150

    1780

    1370

    200

    69

    27.6

    DW35-200/100X

    3500

    1960

    1540

    75

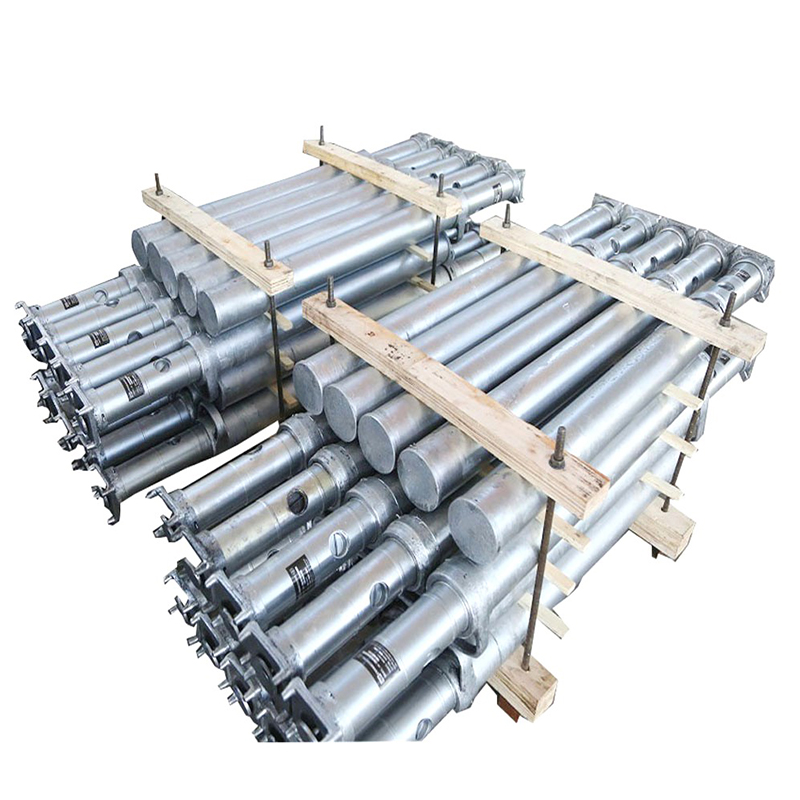

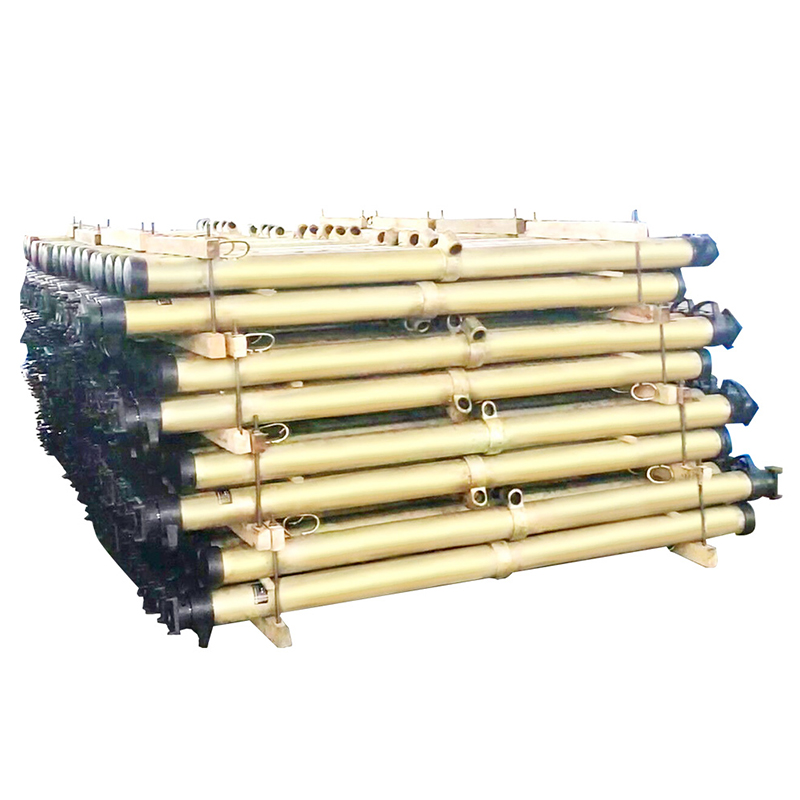

    Pictures of DW31.5-200/100X Suspension Hydraulic Single Prop
