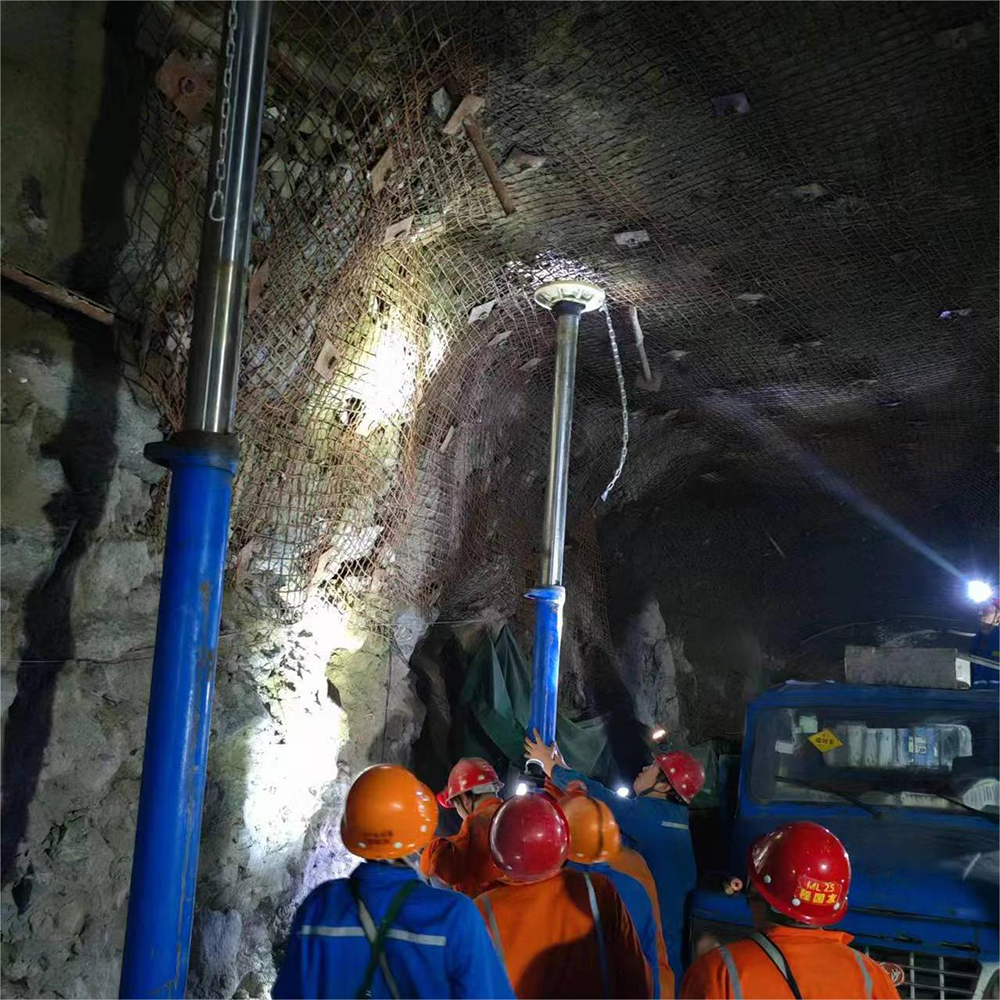

This type single hydraulic prop has many advantages such as good stability and outstanding technical performance.
Contact Us Product CenterThis type single hydraulic prop has many advantages such as good stability and outstanding technical performance. It is widely used in the production of its traditional wooden pillars supporting metal friction compared with high recovery, supporting safe and reliable, working resistance constant, setting load is high, the use of flexible benefits.
Main Parameter of
|
Model project |
Max height （mm） |
Min height （mm） |
Working stroke（mm） |
Rated working resistance KN |
weight （Kg） |
Rated working pressure MPa |
Pump station pressure MPa |
Initial support KN |
Bore diameter（mm） |
Work liquid |
|
DW06-350/110X |
630 |
400 |
230 |
350 |
25 |
39.7 |
15-20
|
132-176 |
110 |
Emulsion containing 1% to 2% M10 emulsified oil
|
|
DW08-350/110X |
800 |
490 |
310 |
28 |
||||||
|
DW10-350/110X |
1000 |
595 |
405 |
32 |
||||||
|
DW12-350/110X |
1200 |
700 |
500 |
36 |
||||||
|
DW14-350/110X |
1400 |
810 |
590 |
40 |
||||||
|
DW16-350/110X |
1600 |
920 |
680 |
44 |
||||||
|
DW18-350/110X |
1800 |
1035 |
765 |
48 |
||||||
|
DW20-350/110X |
2000 |
1150 |
850 |
52 |
||||||
|
DW22-350/110X |
2240 |
1280 |
960 |
56 |
||||||
|
DW25-350/110X |
2500 |
1430 |
1070 |
60 |
||||||
|
DW28-350/110X |
2800 |
1600 |
1200 |
66 |
||||||
|
DW31.5-350/110X |
3150 |
1780 |
1370 |
74 |
||||||
|
DW35-350/110X |
3500 |
1960 |
1540 |
82 |
||||||
|
DW38-250/110X |
3800 |
2163 |
1637 |
|
88 |
28.3 |
||||
|
DW40-250/110X |
4000 |
2224 |
1780 |
96 |
||||||
|
DW42-250/110X |
4200 |
2330 |
1880 |
100 |
||||||
|
DW45-250/110X |
4500 |
2480 |
2020 |
110 |
